Full automatic packing line Your location: Home > Products > Packing line > Full automatic packing line
Product name:

Full automatic packing line

Product model:
Product introduction:

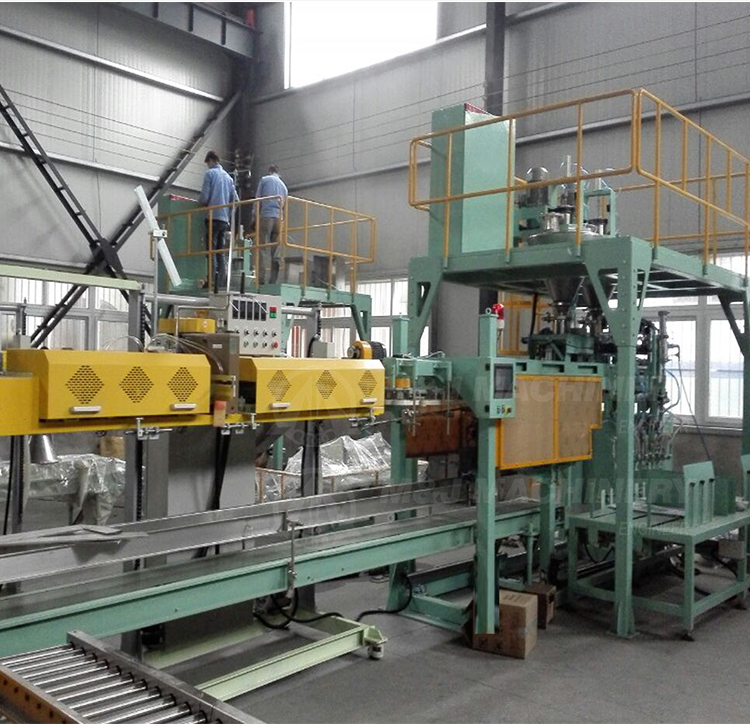

Full automatic packing line

Product Description:

It is Completed Automatic Packing Machine  applicable for packing granules and pellets in industries such as chemistry, fertilizer, grain, food, feed, medicine, construction materials industry, etc.

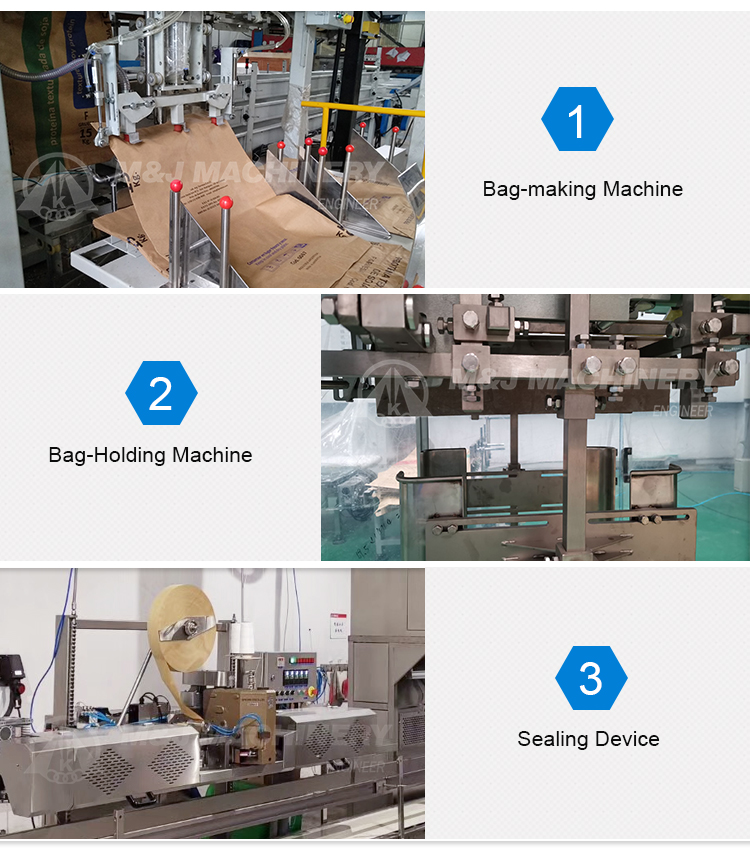

Main Components:
1. Automatic quantity-fixed balance                    2.Automatic bag-supply section
3. Optional section such as air compressor        4.Automatic bag-clamped section
5. Automatic belt conveyor                                  6.Automatic sewing / sealing machine
7. Automatic bag-backwards section                  8.Electrical instrument control cabinet
1.Picking bag, feeding bag, filling material, weighing in , sewing / sealing bag, bag-backwards and bag transmission are finished completely automatically.
2.Adopting PLC to guarantee the reliability of control
3.Adopting high-precision transducer and intelligent instrument to guarantee the accuracy and speed of weight
4.Adopting touch screen with trouble display and help system for easy operation.
5.Adopting imported pneumatic components features compact structure, reliable performance and convenient maintenance.
6.The sewing / sealing machine is an imported machine.
Main Technical Parameter:
Model: MZDP
Packing Scope: 5~10, 10~25, 25~50 (KG) (adjustable as per requirement)
Weight Accuracy: ±0.2%FS
Packaging Material: Open mouth bag
Bag Size: 950×650mm(adjustable as per different weight )
Air Pressure: 0.6 (Mpa)
Air Consumption: 0.7 (m3/min)
Power: 8~16 (KW)
Total weight: 25000 (KG)

Detailed Images:
